iTesseract Fuel Management

iTesseract Fuel Management

connect assets, generators, bowsers and piece of mind

smartControl is a matured IOT platform, connecting resources via gsm feed to your dashboards and smart phones.


smartControl Fuel automation allows you to monitor fuel levels in generators, movable bowsers, stationery bowsers and trucks. Diesel keeps operations going, and are crucial for manufacturing and mining. Even as a backup resource in generators, millions can be lost if a generator fails. Even lives can be lost. iTesseract monitor diesel levels in bowsers, stationey and mobile, and trucks, generators, and warns of diesel, and a couple of other conditions. Batteries in generators for example needs to be in good shape, filters. Heat indicates problems. Did the generator come on or not? All these conditins can be monitored and you can be alerted of failures and problems, sometimes before they happen.

Diesel theft is a huge problem, and is known to criple any service.

smartControl Fuel management offers:
  • Current reservoir levels on smartPhones and dashboards.
  • Current state of generator(on/off).
  • Time and date when genrator was swtiched on or off.

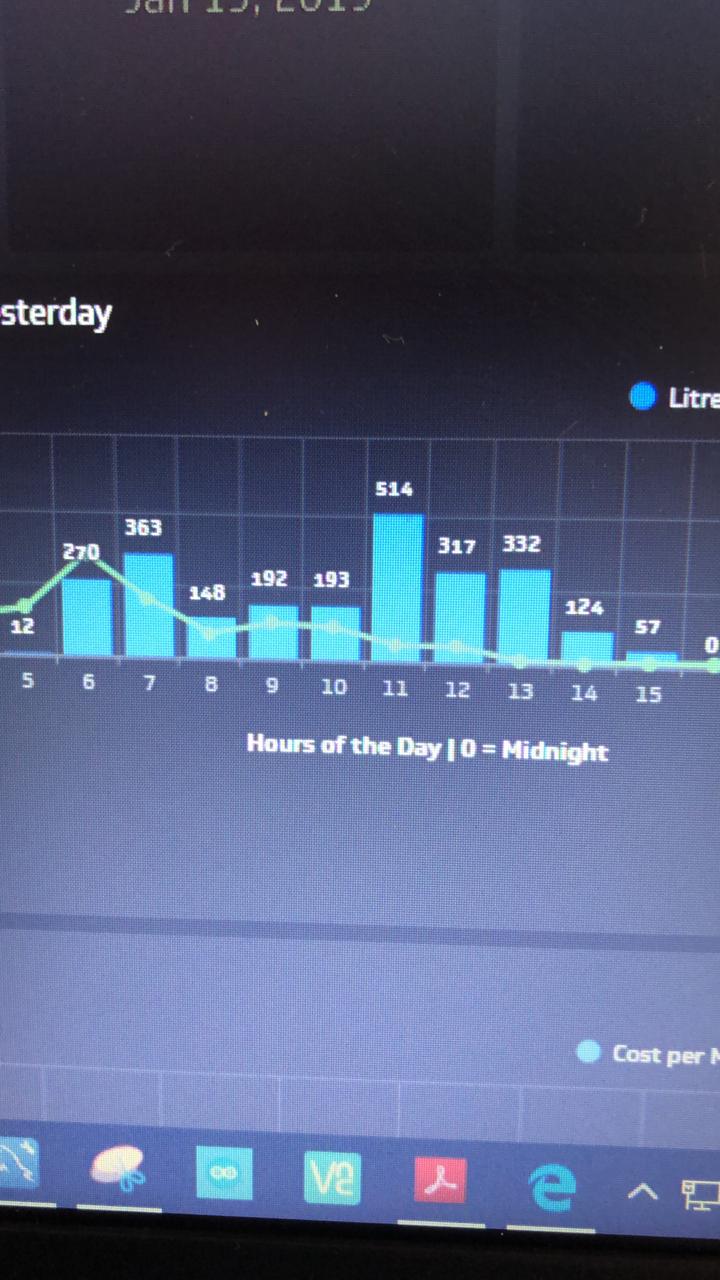

  • Diesel usage runrate(every five minutes).
  • GPS position for mobile bowsers and trucks.
  • Dispenses and fillups on bowsers, generators, trucks, per liter, date and time.
Installation is a probe, connecting power to smartControl. Any mechanic can do this installation.

About smartControl
smartControl connects your already built devices or newly concept IOT devices to the world, to dashboards on browsers, dashboards on smart phones and your call center applications.
smartControl offers GSM communication protocols, connecting your assets to a worldclass IOT backbone in the cloud.

MQTT, IBM IOT standards are used for delivery backbone. Both ways messaging are provided for, from your sensors or assets to the cloud and smartPhones, and the other way, from your smartPhones, all the way back to your asset or sensors.

Messages are real-time, and can be delivered bi-directional between dashboards and smartPhones, to sensors and assets, in a second! From the cloud to the sensor, or back.

Auditability is provided by an audit trail, containing messages, devices, time and date stamps, topics and payloads.

With smartControl you can build your own custom functionality for water automation. The following are examples of what you can include in your design
- Water meters, counting water usage per hour
- Solonoids, switch water systems on and off from your phone or dashbaords
- Relays, switch pumps on/off automatically or from cell phone on demand
- Diesel monitoring on mines, generators, trucks and bowsers
- Tank or reservoir levels pressure sensors, measure levels of reservoirs and switch pumps
- Water leak detection
- Other, like weather station, barometers for rain warnings, lightning detectors, temperature, humidities
- and more, there are countless combinations you can add to your custom design.

Add your own electronic containers or get iTesseract made containers, UV protection, 4 mm thick and six mm flanshes, poly utherane, robust and can handle temperatures at 80 degrees celsius!

Information can stream for real-time analytics, or you can use this information to do your operational or for fascilities management and planning.

Technical specifications of the client device, smartControl:
  • 6-9v Volt DC input.
  • Tested on 12v batteries, 24v batteries.(with dc-dc converters with wide input to 40V)
  • Suitable for solar power installations. Or 220 mains with dc adapter.
  • smartPSU for spikes and dips protection.
  • Inputs available are serial, digital, analog, I2C and serial.
  • Airtime left, cell number, signal strength, battery level reading, and other sensor readings are submitted.
  • Off the shelf sensors like temperature, humidity, air quality, pressure, load, current, volt, UV, basically thousands of sensors available on the market can be added and immediately will update your dashboards.
  • MQTT backbone can put data on your servers realtime. Including Windows and Linux backends. Integration done in minutes using MQTT message clients like Node-Red.

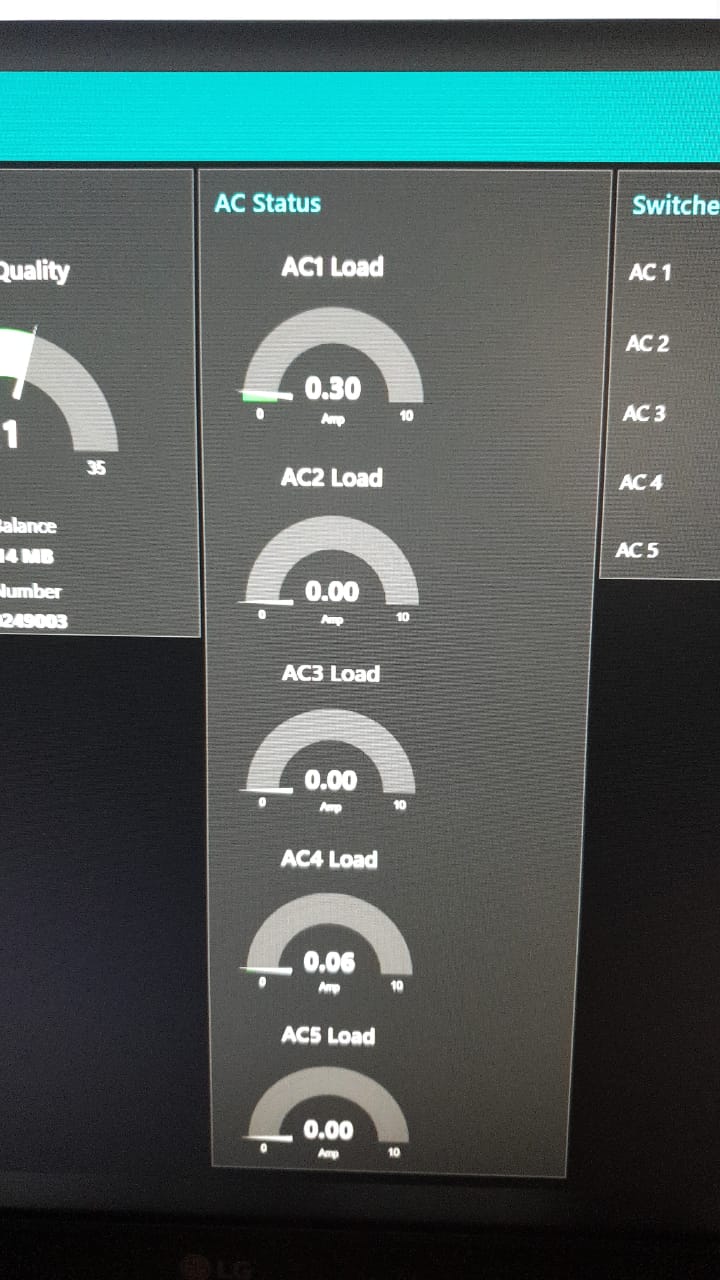

  • Customizable Dashboards on smartphones and monitors.
  • Cell phone apps with alarm warnings available on Android available.
  • Use your own containers, smartController unit is in box approximately 21cm x 12cm x 8cm.
  • Installation are easy, and can be done with basic skills of electronics and electricity.
  • Training available.

Why not take your idea to reality?

iTesseract smartControl offers you to start an IOT business, or do an IOT project today, on scale, with an end-to-end platform. You do not have to be concerned about the cost of development of controllers, skills, linking to the cloud, dashboarding, it is ready for you to switch on. Add your own sensors, and have a unique custom solution within a day. iTesseract partners have these products built with iTesseract smartController and are selling and delivering value today doing:
- Medical health installations
- Water automation and management
- Generator health monitoring
- Smart Water meters
- Smart Electricity meters
- Server room monitoring and control
- Chicken and pig farming environment health monitoring
- Aircon management and monitoring
- Weather stations online
- Truck movement and cargo monitoring
- Mobile medical services health monitoring
- and so much more.
